Nanokit Integrated ESP32

Specification :

Microcontroller (ESP32)

• CPU: Dual-core Xtensa® 32-bit LX6 @ 240MHz (Espressif)
• ==========

• Co-Processor ULP

• Clock Frequency 240MHz

• Performance: 600 (Dhrystone Million Instructions Per S).

Memory

• Flash Storage: 16MB
• Internal SRAM: 520KB
• PSRAM: 8MB

Connectivity

• Wi-Fi: 802.11 b/g/n (2.4GHz)
• Bluetooth: 4.2 BR/EDR and BLE
• Ethernet 100 Mbps

I/O Interfaces

• 34 × GPIO pins
• 2 (8-bit) × DAC (Digital-to-Analog Converter)
• 18 (12-bit)SAR× ADC channels (Analog-to-Digital Converter)
• 2 × SPI Controllers
• 2 × I2C Controllers
• 2 × UART Ports
• 2 × I2S Interfaces
• 16 × PWM Outputs
• 32 x External Interrupts Support
• 2 x CAN

Security Features

• Secure Boot & Flash Encryption 1024-Bit OTP
• Cryptographic hardware acceleration: AES, SHA, RSA, ECC, RNG
• Secure OTA (Over-The-Air) updates

Peripheral Support

• Integrated Hall Effect Sensor
• 10 x Capacitive Touch Sensing
• 16 x RTC (Real-Time Clock) with Low-Power Mode ( 10uA Deep Sleep Mode )

USB Support

• USB-to-Serial (for programming and debugging)

Software Compatibility

• Arduino IDE
• MicroPython
• ESP-IDF (Espressif SDK)
• PlatformIO in VSCode (with DeepSeek AI)
• Pro_AmineUMT IDE in VSCode (with DeepSeek AI)


  ---

  Power Management for Nanokit Integrated ESP32 Board

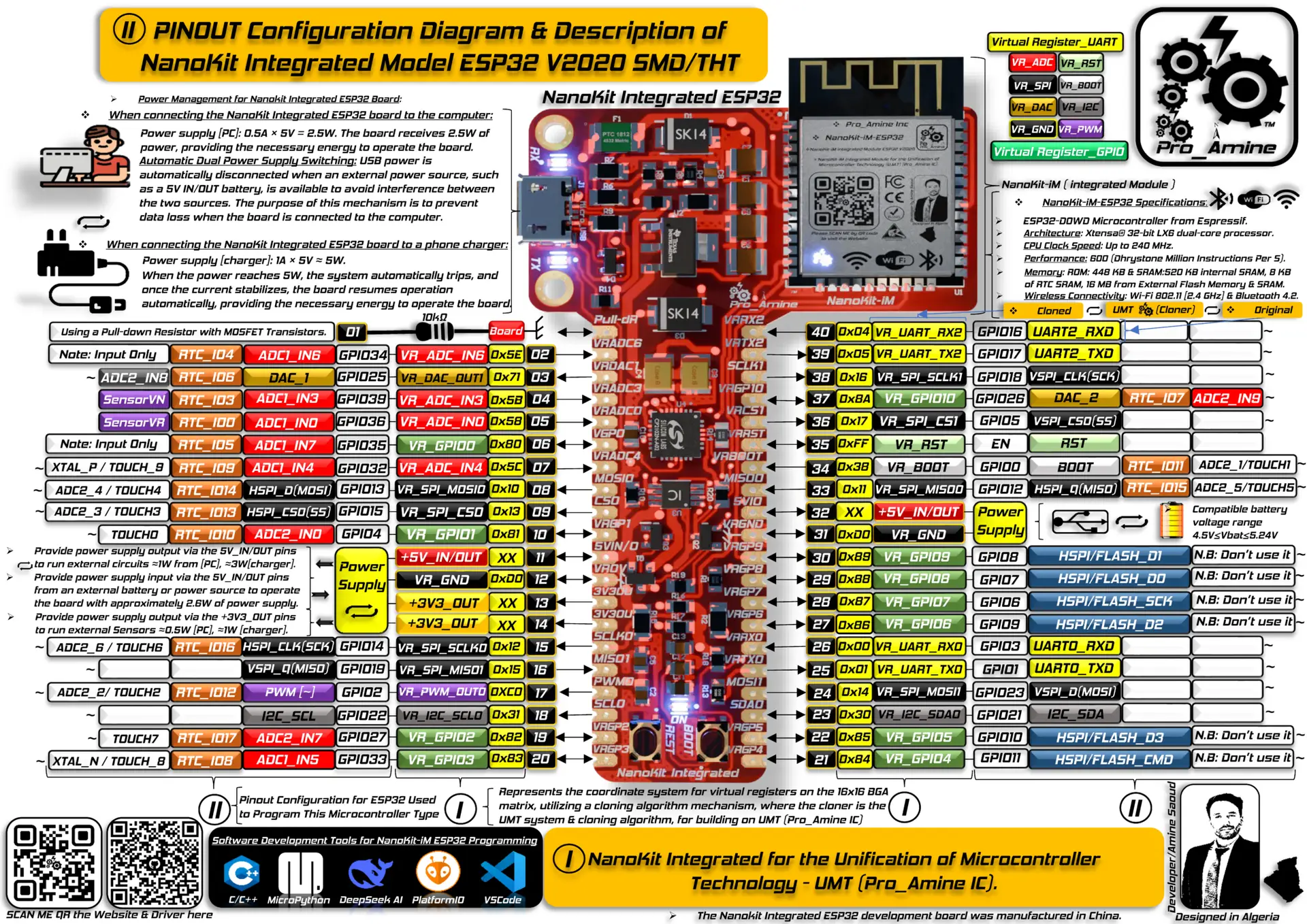

  Connecting the Nanokit Integrated ESP32 Board to a Computer

  • Power Supply [PC]: 0.5A × 5V = 2.5W
  • The board receives 2.5W of power, ensuring stable operation.
  • Automatic Dual Power Supply Switching:
    • When an external power source (e.g., a 5V IN/OUT battery) is detected, USB power is automatically disconnected.
    • This mechanism prevents interference between power sources and avoids data loss while connected to a computer.

  Connecting the Nanokit Integrated ESP32 Board to a Phone Charger

  • Power Supply [Charger]: 1A × 5V ≈ 5W
  • When the power reaches 5W, the system automatically trips for protection.
  • Once the current stabilizes, the board resumes operation automatically, providing the necessary energy for stable performance.

  ---

Applications

• Ideal for Applications Such As:🚀 IoT Devices | 🤖 Robotics | 💡 Smart Automation | 📶 Wireless Communication | 🏭 HMI Industrial Systems | 🤖 AI & Embedded Projects |🎓📖 Education |💡UMT Platform

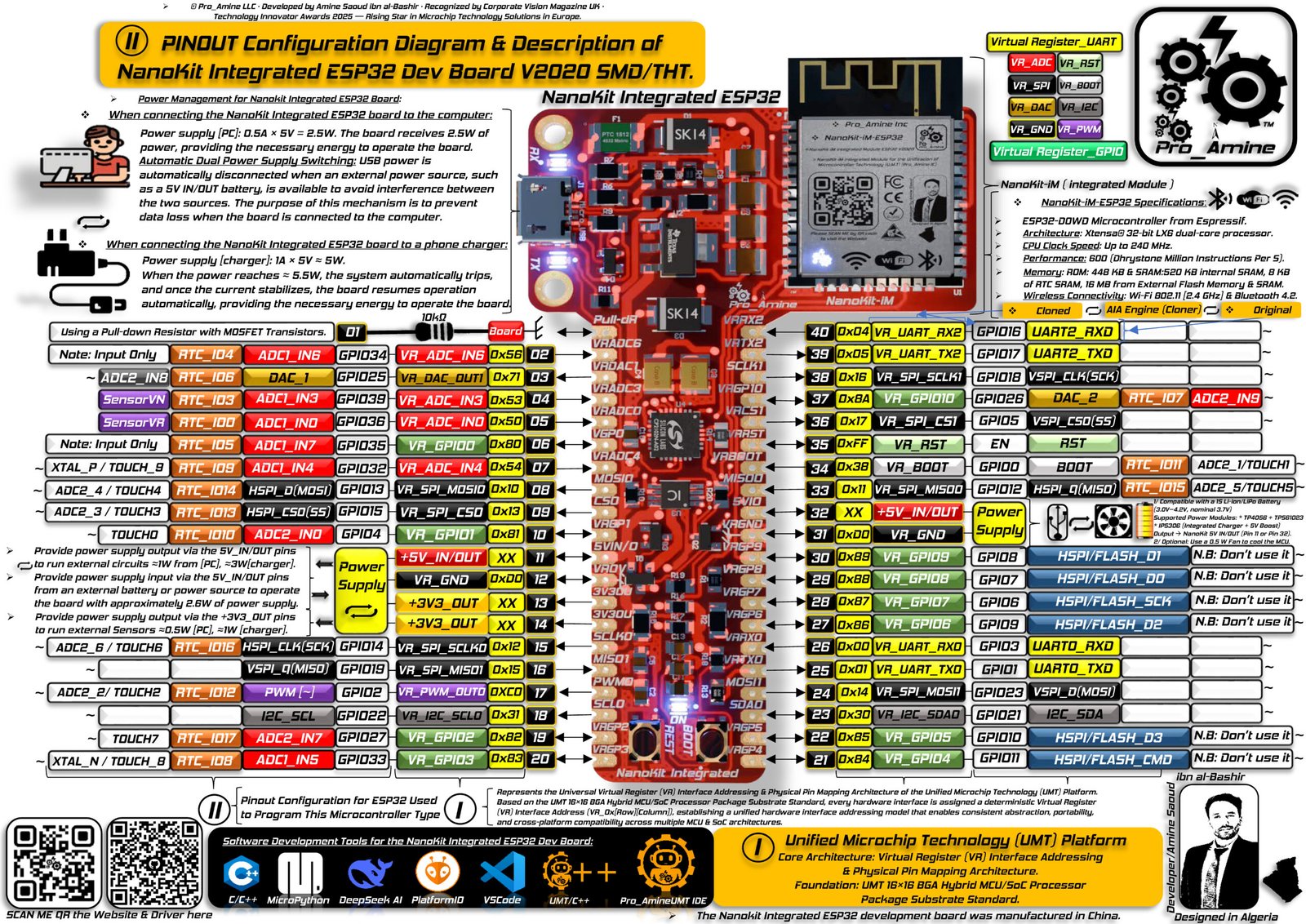

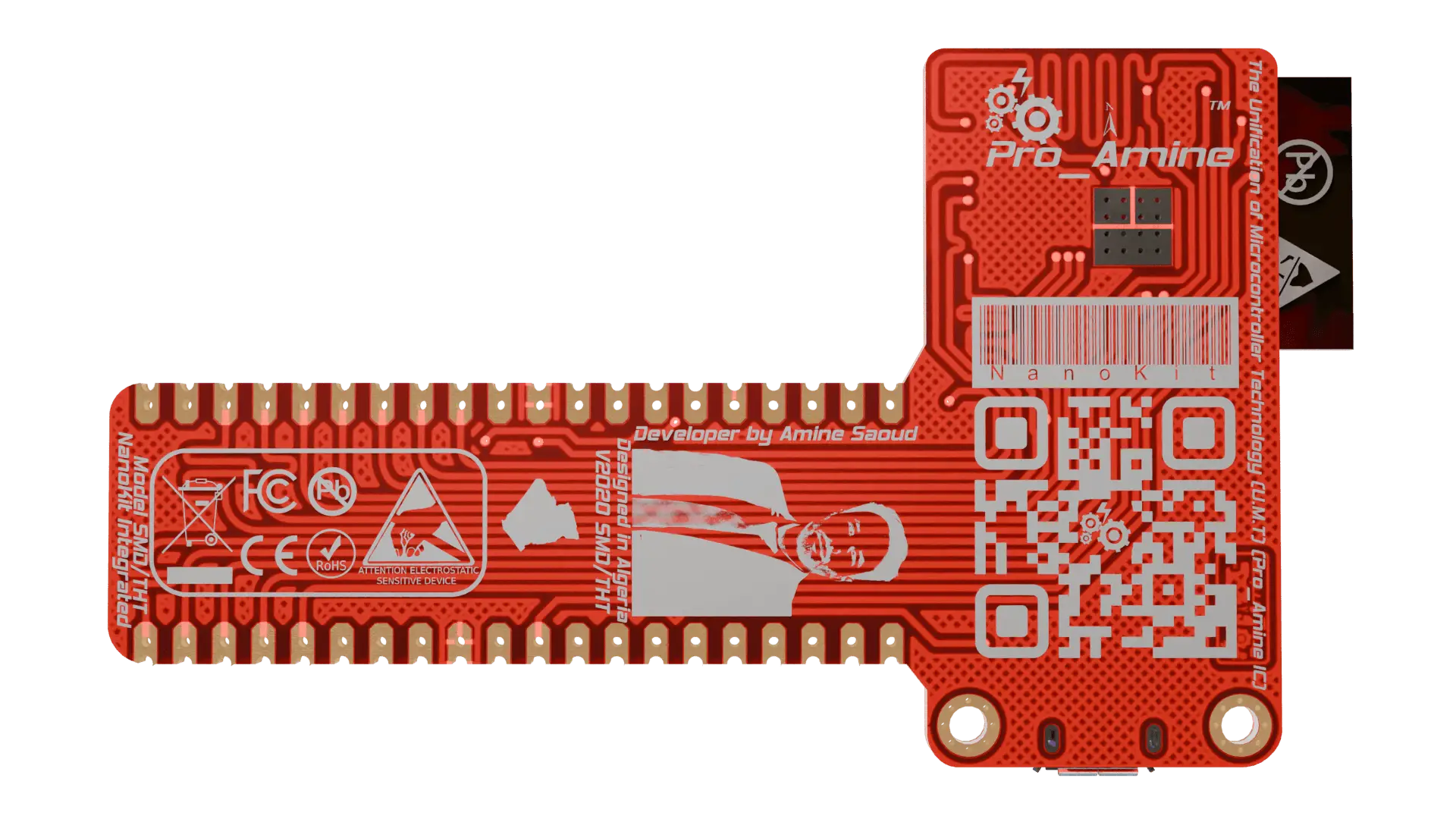

• The Nanokit Integrated ESP32 features 40 SMD pins, designed to be soldered (integrated) onto your custom board. Additionally, it comes with a ready-to-use library for Altium Designer, KiCad, Proteus, and other PCB design software. This predefined object simplifies integration, making it easier to link the module seamlessly into various projects.

Obsolescence

✅ Industrial-Grade Performance:
Operating temperature: -40°C to +85°C for industrial and outdoor applications.
✅ Long-Term Availability:
Guaranteed production support until at least January 2050.
